ggplot2 for Specialized Visualizations

Table of Contents

Introduction

Welcome to the third part of our ggplot2 journey, where we take a deep dive into specialized visualizations that elevate your data storytelling to new heights. In this blog, we’ll unravel the power of ggplot2 in crafting compelling Heatmaps, Violin Plots, Network Graphs, Sunburst and Treemap Plots, Animated Visualizations, and explore techniques for Customizing Legends and Color Scales.

Join us as we unlock the potential of ggplot2 to transform your data into visually stunning narratives. Whether you’re exploring intricate patterns, depicting hierarchical structures, or adding a dynamic touch with animations, this blog is your guide to harnessing the specialized capabilities of ggplot2 for truly impactful visualizations. Let’s embark on this exciting journey together!

Heatmaps and 2D Densities: Unveiling Patterns in Data

In data visualization with ggplot2 in Python, let’s delve into the dynamic realm of heatmaps, exploring their concept and understanding their significance for unraveling complex data patterns.

Heatmaps emerge as a powerful tool in the data visualization toolkit. They provide a graphical representation of data in a matrix format, where values are represented by colors. This visual encoding allows for a quick and intuitive understanding of patterns, trends, and variations within the dataset.

Concept of Heatmaps in Data Visualization:

Heatmaps leverage color gradients to highlight variations in data, making it easier to identify clusters, trends, or anomalies. The color intensity at each intersection of rows and columns reflects the magnitude of the underlying data, offering a visual summary that is both insightful and accessible.

When dealing with complex datasets, heatmaps excel in providing a concise overview. Whether analyzing gene expression, financial metrics, or any multidimensional data, heatmaps reveal intricate structures and relationships. The ability to spot patterns across multiple dimensions makes heatmaps invaluable for tasks such as clustering, outlier detection, and trend identification.

Now, let’s translate this conceptual understanding into practical implementation using ggplot2 in Python, as we create compelling and informative heatmaps to bring our data to life.

Code example and Explanation:

Let’s now dive into a hands-on example, demonstrating the creation of heatmaps using ggplot2 in Python. The following code illustrates a basic heatmap using a synthetic dataset for clarity

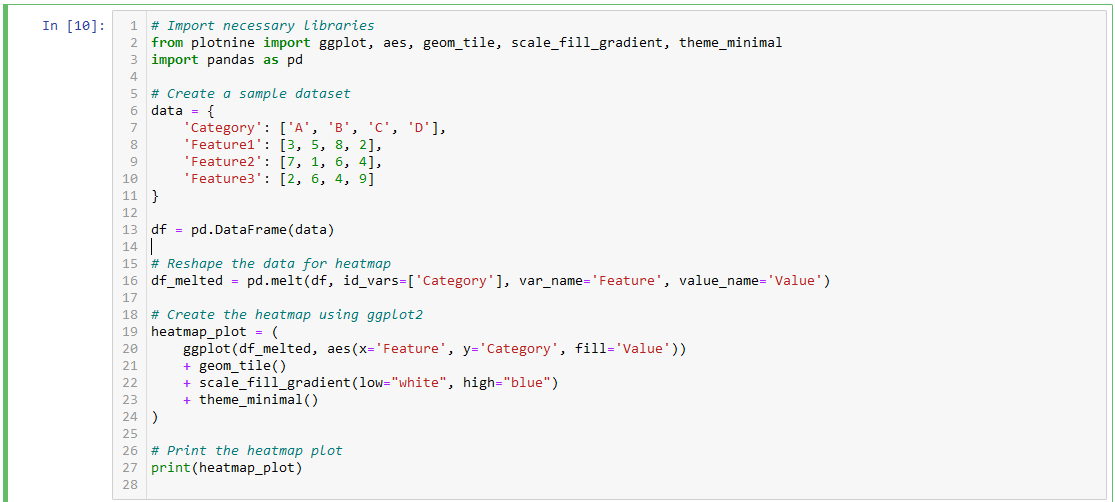

1

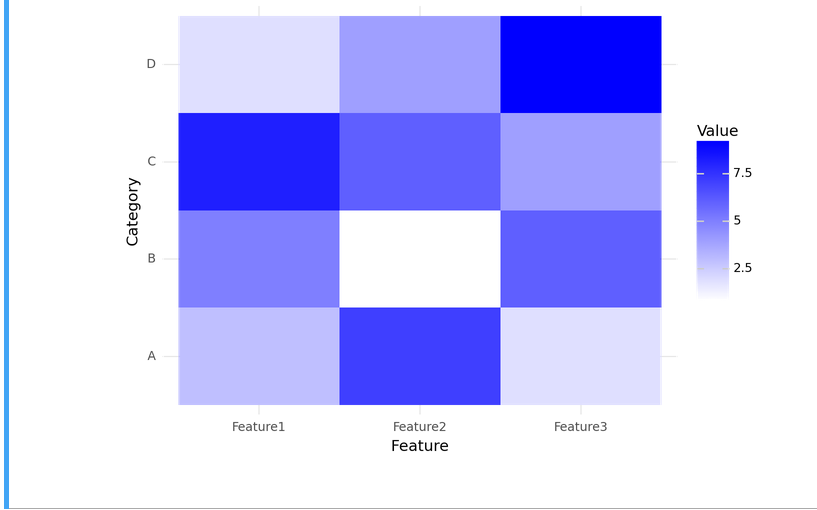

Output:

Explanation:

  1. Import Libraries: We import the necessary libraries, including ggplot from the plotnine package and pandas for data manipulation.

  2. Create Sample Dataset: We create a sample dataset with categories (A, B, C, D) and corresponding features.

  3. Reshape Data for Heatmap: The data is reshaped using pd.melt() to fit the requirements of the ggplot2 heatmap.

  4. Create Heatmap with ggplot2: Using ggplot2 syntax, we create a heatmap using geom_tile() to represent each cell and scale_fill_gradient() to define the color gradient.

  5. Display the Heatmap: The resulting heatmap plot is printed.

Feel free to customize the code based on your dataset and specific requirements. This example provides a foundation for creating heatmaps using ggplot2 in Python.

Application of 2D Densities in ggplot2

In data visualization with ggplot2, 2D densities play a crucial role in representing the distribution and intensity of data points in a two-dimensional space. Unlike traditional scatter plots, which may become cluttered with overlapping points, 2D densities provide a smooth representation of the data, highlighting regions of high concentration.

The concept of 2D densities involves estimating the probability density function in two dimensions, allowing us to visualize not only the individual data points but also the overall distribution and density patterns within the data.

Let’s dive into a practical example to illustrate the application of 2D densities using ggplot2. We’ll use a synthetic dataset for simplicity:

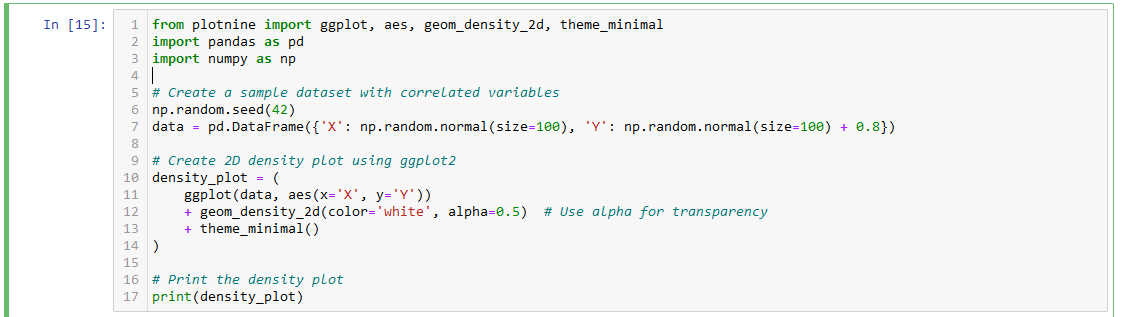

3

This example generates a 2D density plot using the geom_density_2d() function in ggplot2. The density plot is overlaid on a scatter plot of the data, allowing us to visualize the concentration of points in different regions.

Practical Insights and Interpretation:

When compared to heatmaps, which provide a grid-based representation of data intensity, 2D density plots offer a continuous and smoother view of the distribution. The contours in a 2D density plot represent regions where data points are more concentrated, aiding in the identification of clusters and trends.

  • Bivariate Distribution Analysis: 2D densities are valuable in understanding the joint distribution of two variables. This is particularly useful in fields such as finance, where the relationship between risk and return can be explored.

  • Spatial Analysis: In geographical data visualization, 2D densities help visualize the intensity of events or occurrences across a map, providing insights into spatial patterns.

  • Biological Data Exploration: In biological studies, 2D density plots are used to analyze the joint distribution of two biomarkers, revealing potential correlations or clusters in complex datasets.

By incorporating 2D densities in your ggplot2 visualizations, you gain a nuanced perspective on the distribution of data points, enabling better-informed decision-making in various real-world scenarios.

Violin Plots and Ridgeline Plots

Now let us take a look at violin plots and ridgeline plots in ggplot.

Exploring Violin Plots in ggplot2

In the realm of data visualization with ggplot2, violin plots offer a compelling way to represent the distribution of data. A violin plot combines elements of box plots and kernel density plots, providing a richer visualization of the underlying data distribution.

Advantages of Violin Plots:
  • Distribution Insight: Violin plots display the probability density of the data at different values, giving a clear view of the distribution.
  • Multimodal Detection: They are effective in identifying multiple modes in the data distribution, which may not be evident in a traditional box plot.
  • Comparison Across Groups: Violin plots are particularly useful for comparing the distribution of a variable across different groups, allowing for easy visual comparison.
Code Examples Illustrating the Creation of Violin Plots with ggplot2

Let’s walk through some practical examples of creating violin plots using ggplot2 in Python. We’ll use a sample dataset for demonstration:

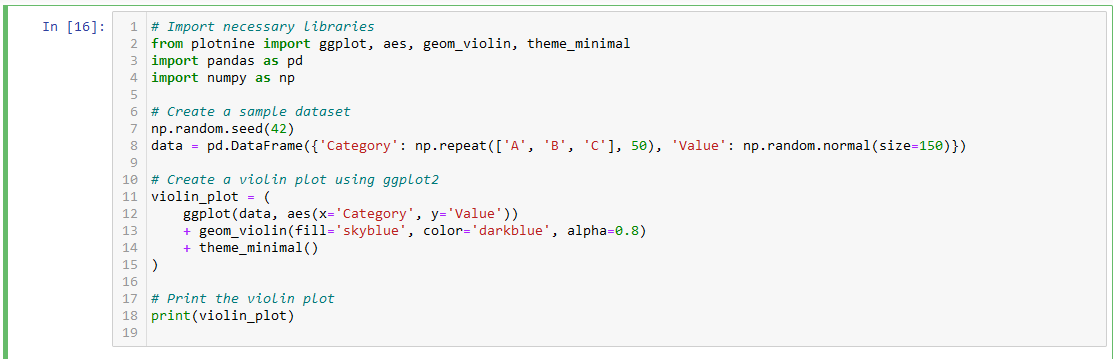

4

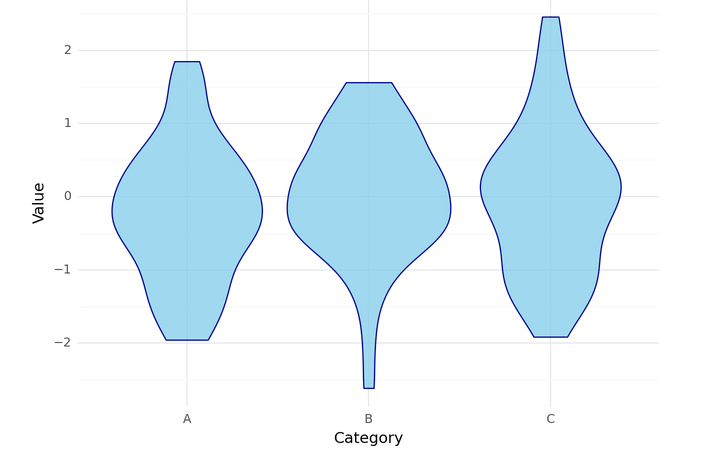

Output:

  1. Import Libraries: We import the necessary libraries, including ggplot from the plotnine package and pandas for data manipulation.

  2. Create Sample Dataset: We generate a sample dataset with a categorical variable (‘Category’) and a numerical variable (‘Value’).

  3. Create Violin Plot with ggplot2: Using the geom_violin() function in ggplot2, we create a violin plot. Parameters such as fill (fill color), color (border color), and alpha (transparency) are specified for customization.

  4. Display the Violin Plot: The resulting violin plot is printed, providing a visual representation of the data distribution within each category.

Ridgeline Plots: A Unique Perspective

In the dynamic landscape of data visualization using ggplot2, ridgeline plots emerge as a distinctive and engaging technique for conveying multivariate distributions. Also known as joy plots, ridgeline plots provide a layered representation of probability density functions, offering a unique perspective on the distribution of multiple variables.

Ridgeline plots are particularly useful when visualizing the distribution of a numeric variable across different categories or groups. Instead of relying on traditional overlaid histograms or density plots, ridgeline plots elegantly stack multiple distributions, creating a visually appealing and informative display.

Key Features of Ridgeline Plots:
  • Layered Aesthetics: Each category’s distribution is represented on a separate layer, allowing for easy comparison.
  • Smooth Transitions: Ridgeline plots create smooth transitions between distributions, enhancing the overall visual experience.
  • Faceted Arrangement: Ridgeline plots can be arranged in facets, offering additional insights into the relationship between variables.
Code Examples Demonstrating the Implementation of Ridgeline Plots in ggplot2

Let’s delve into practical examples to showcase how to implement ridgeline plots using ggplot2 in Python. We’ll use a sample dataset for illustration:

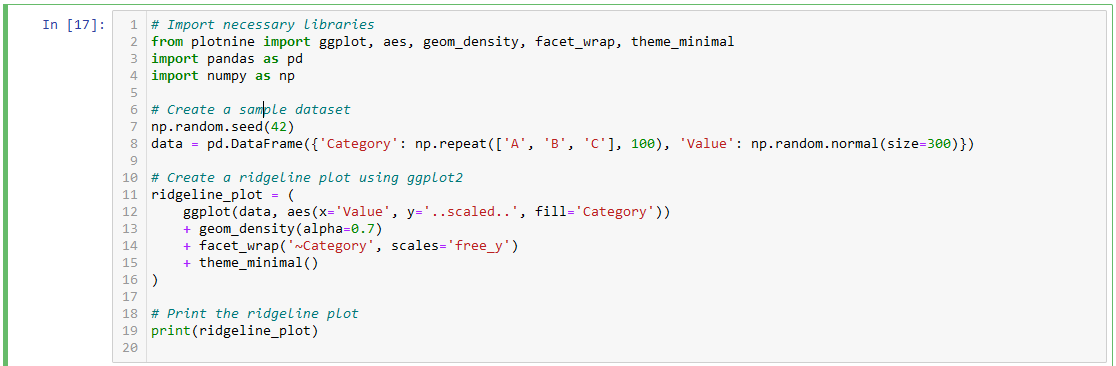

6

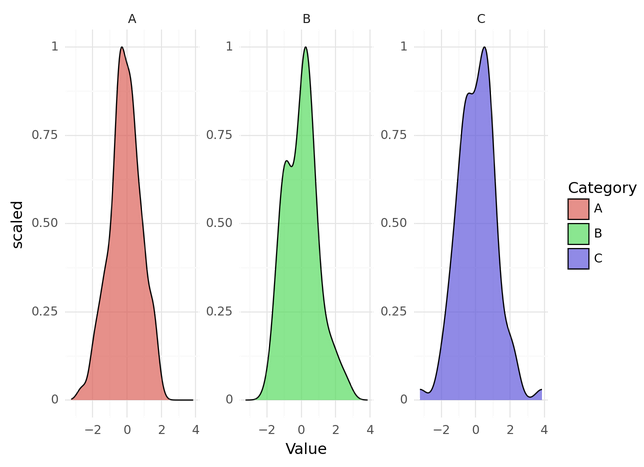

Output:

Explanation:

  1. Import Libraries: We import necessary libraries, including ggplot from the plotnine package and pandas for data manipulation.

  2. Create Sample Dataset: We generate a sample dataset with a categorical variable (‘Category’) and a numerical variable (‘Value’).

  3. Create Ridgeline Plot with ggplot2: Using the geom_density() function in ggplot2, we create a ridgeline plot. The facet_wrap() function is employed to arrange the ridgeline plots for each category. Parameters such as alpha control the transparency of the density plots.

  4. Display the Ridgeline Plot: The resulting ridgeline plot is printed, providing a visually rich representation of the distribution of ‘Value’ across different categories.

Feel free to modify this code to suit your dataset and explore additional customization options offered by ggplot2 for creating impactful ridgeline plots.

Comparative Analysis and Use Cases

In the realm of data visualization, choosing the right plot is crucial for effectively communicating insights. Let’s conduct a comparative analysis of two powerful visualization techniques: Violin Plots and Ridgeline Plots. By understanding their strengths and weaknesses, we can identify scenarios where each visualization excels.

Comparative Analysis of Violin Plots and Ridgeline Plots:
Violin Plots:
  • Representation: Violin plots display the distribution of data, providing insights into the central tendency, spread, and multimodal characteristics.
  • Advantages:
    • Effective for visualizing the distribution of a single variable across multiple categories.
    • Clear representation of quartiles, medians, and density variations.
    • Useful for identifying outliers and comparing distributions between groups.
Ridgeline Plots:
  • Representation: Ridgeline plots showcase the distribution of a numeric variable across different categories, creating a layered, smooth display of probability density functions.
  • Advantages:
    • Ideal for visualizing multivariate distributions, especially when comparing several categories simultaneously.
    • Offers a visually appealing representation with smooth transitions between distributions.
    • Faceted arrangement allows for additional insights into relationships between variables.
When to Choose Violin Plots:

  1. Single Variable Comparison: Violin plots are effective when comparing the distribution of a single variable across various categories or groups. For example, comparing the distribution of exam scores across different classes.

  2. Outlier Detection: If identifying outliers and understanding the central tendency of the data are crucial, violin plots provide a clear visual representation of quartiles and medians.

When to Choose Ridgeline Plots:

  1. Multivariate Distribution Comparison: Ridgeline plots shine when visualizing the distribution of multiple variables across categories. For instance, exploring the distribution of monthly sales across different product categories.

  2. Smooth Transition Emphasis: In cases where smooth transitions between distributions are important for a visually appealing representation, ridgeline plots offer an elegant solution.

  3. Faceted Arrangement Insights: Ridgeline plots with faceted arrangements provide additional insights into relationships between variables, making them suitable for exploratory data analysis.

By considering the specific characteristics and advantages of each visualization technique, we can make informed decisions based on the nature of the data and the insights we aim to extract. Selecting the right visualization tool enhances our ability to communicate complex patterns and trends effectively.

Network Graphs with ggplot2

In the realm of data visualization, network graphs stand out as powerful tools for unraveling complex relationships. Let’s delve into a conceptual overview of network graphs, exploring their significance in representing intricate connections within datasets.

Network graphs, also known as graphs or networks, provide a visual representation of relationships between entities. In a network graph, entities are represented as nodes, and the connections between them are depicted as edges. This structure enables the visualization of complex systems, where entities interact, collaborate, or influence one another.

Key Components of Network Graphs:
  • Nodes: Represent individual entities, such as people, organizations, or any other relevant unit.
  • Edges: Illustrate the connections or relationships between nodes, indicating how entities are linked.
Importance of Network Graphs for Representing Complex Relationships

1. Clarity in Connectivity:

  • Network graphs excel in revealing the connections between entities, providing a clear and intuitive representation of how different elements are interrelated.

2. Pattern Recognition:

  • By visualizing relationships in a graphical form, network graphs facilitate the identification of patterns and structures within complex systems.

3. Community Detection:

  • Network graphs are instrumental in detecting communities or clusters of nodes that exhibit stronger internal connections than with nodes outside the cluster.

4. Centrality Analysis:

  • Centrality metrics in network graphs help identify important nodes that play a crucial role in maintaining connectivity or influence within the network.

5. Dynamic Interaction Visualization:

  • For dynamic systems, network graphs can represent changes over time, allowing users to observe how relationships evolve.
Code and Explanation:

Creating network graphs using ggplot2 in Python involves using the networkx library to generate the graph and plotnine for the actual plotting. Here’s a code walkthrough with explanations

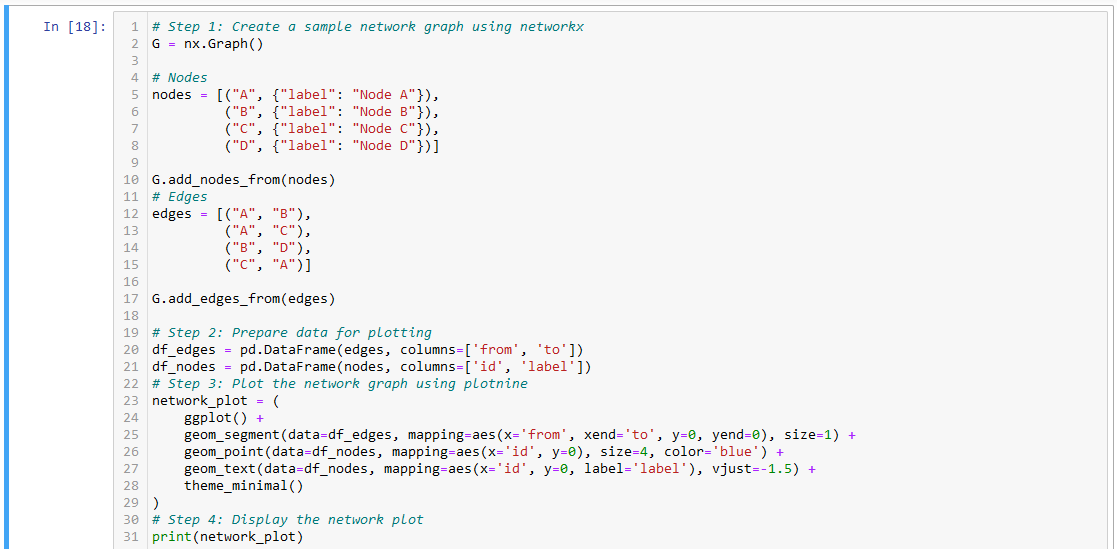

8
Code Walkthrough:

  1. Create Network Graph with networkx:

    • Define nodes and edges to create a sample network graph using networkx.

  2. Prepare Data for Plotting:

    • Convert the graph information into DataFrames for nodes and edges. This step is crucial for using plotnine to plot the graph.

  3. Plot the Network Graph with plotnine:

    • Use plotnine functions to create segments for edges, points for nodes, and text labels for node names.

  4. Customization:

    • Adjust aesthetics and appearance based on specific requirements. For example, you can modify the size, color, and positioning of nodes and edges.

  5. Display the Plot:

    • Finally, print or display the network plot to visualize the created graph.

Feel free to customize the code further based on your specific dataset and visualization preferences. Adjusting parameters in plotnine and networkx allows for a wide range of customization options for network graph visualizations in Python.

Highlighting Key Features and Customization Options

When it comes to visualizing complex relationships and connections, network graphs provide a powerful solution. In this section, we will explore key features and advanced customization options in ggplot2 for creating compelling network visualizations. Additionally, we’ll share tips for enhancing clarity and visual appeal in your network graphs.

Node and Edge Aesthetics:

Utilize the geom_node_point() and geom_edge_link() functions to customize the appearance of nodes and edges. Adjust parameters such as size, color, and shape to emphasize specific elements.

2. Labeling Nodes:

Enhance readability by adding labels to nodes using geom_node_text(). This is particularly useful when nodes represent entities or key data points.

3. Color Mapping:

Apply color mapping to nodes or edges based on specific attributes. Use scale_color_manual() to define a custom color palette that provides additional information within the graph.

4. Layout Algorithms:

Experiment with different layout algorithms to control the spatial arrangement of nodes. Common layout options include Fruchterman-Reingold ('fr') and Kamada-Kawai ('kk').

5. Edge Curvature:

Introduce curvature to edges using the geom_edge_link(curvature=...) parameter. This can improve the visual flow of the network graph.

6. Interactive Visualizations:

Enhance user engagement by incorporating interactivity. Explore libraries like plotly for creating interactive network visualizations with features such as hover information and zoom capabilities.

Tips for Enhancing Clarity and Visual Appeal

Node Size and Centrality:

Adjust node size based on centrality metrics using geom_node_point(aes(size=...)). This highlights the importance of specific nodes within the network.

2. Color Harmony:

Ensure a harmonious color scheme to improve overall aesthetics. Consider using color gradients or categorical color palettes that align with the nature of your data.

3. Faceting for Insightful Comparisons:

Utilize faceting with facet_grid() or facet_wrap() to create multiple panels, enabling comparisons across different subsets of the network.

4. Clear Node Labeling:

Opt for clear and concise node labeling to avoid clutter. Adjust the positioning and size of labels to enhance visibility.

5. Consider Edge Transparency:

Introduce transparency to edges using the alpha parameter. This can be beneficial when dealing with overlapping connections.

By leveraging the advanced features and customization options in ggplot2, you can create network graphs that effectively communicate complex relationships and patterns within your data. Experiment with different parameters, layouts, and interactive elements to tailor your network visualizations to the specific insights you aim to convey.

Node Size and Centrality:

Adjust node size based on centrality metrics using geom_node_point(aes(size=...)). This highlights the importance of specific nodes within the network.

2. Color Harmony:

Ensure a harmonious color scheme to improve overall aesthetics. Consider using color gradients or categorical color palettes that align with the nature of your data.

3. Faceting for Insightful Comparisons:

Utilize faceting with facet_grid() or facet_wrap() to create multiple panels, enabling comparisons across different subsets of the network.

4. Clear Node Labeling:

Opt for clear and concise node labeling to avoid clutter. Adjust the positioning and size of labels to enhance visibility.

5. Consider Edge Transparency:

Introduce transparency to edges using the alpha parameter. This can be beneficial when dealing with overlapping connections.

By leveraging the advanced features and customization options in ggplot2, you can create network graphs that effectively communicate complex relationships and patterns within your data. Experiment with different parameters, layouts, and interactive elements to tailor your network visualizations to the specific insights you aim to convey.

Sunburst and Treemap Plots

In the realm of data visualization, Sunburst and Treemap visualizations stand out as effective techniques for representing hierarchical data structures. In this section, we’ll provide an active voice overview of these visualizations, highlighting their features and discussing the advantages of utilizing ggplot2 for hierarchical data representation.

Overview of Sunburst and Treemap Visualizations

Sunburst Visualization:

  • Representation: Sunburst visualizations display hierarchical data in a radial, multilevel pie chart. Each level of the hierarchy is represented by concentric rings, making it visually intuitive to explore the relationship between parent and child categories.

  • Advantages:

    • Facilitates the exploration of nested data structures.
    • Enables a clear understanding of proportions and relationships within hierarchical data.

Treemap Visualization:

  • Representation: Treemap visualizations use nested rectangles to represent hierarchical data. Each rectangle’s size corresponds to the proportion of the data it represents within the entire hierarchy.

  • Advantages:

    • Efficiently displays hierarchical structures with varying levels of granularity.
    • Allows for the comparison of relative sizes and proportions of different categories.
Advantages of Hierarchical Data Representation Using ggplot2

1. Flexible Customization:

ggplot2 provides a high level of customization, allowing users to adapt the aesthetics of Sunburst and Treemap visualizations based on specific data and visualization requirements.

2. Consistent Grammar of Graphics:

Leveraging the grammar of graphics concept in ggplot2 ensures a consistent and coherent approach to building hierarchical visualizations. This enables users to create complex yet cohesive plots.

3. Facilitation of Storytelling:

With ggplot2, users can create dynamic and interactive visualizations that enhance storytelling. This is particularly valuable when presenting insights from hierarchical data to diverse audiences.

4. Seamless Integration with R Ecosystem:

As part of the R ecosystem, ggplot2 seamlessly integrates with other R libraries and tools, facilitating a comprehensive and unified approach to data analysis and visualization.

5. Extensive Community Support:

The ggplot2 community offers a wealth of resources, tutorials, and expertise, making it easier for users to explore, troubleshoot, and expand their knowledge in hierarchical data visualization.

By employing ggplot2 for Sunburst and Treemap visualizations, users can harness the flexibility and robustness of this visualization library, enabling the creation of insightful and visually engaging representations of hierarchical data structures. As we proceed, we’ll delve into practical implementations and hands-on examples to illustrate the power of ggplot2 in bringing hierarchical data to life.

Customizing Legends and Color Scales in ggplot2

Clear and well-designed legends play a crucial role in effective data communication. They serve as a guide for interpreting the colors, shapes, and sizes in a plot, enhancing the overall understanding of the visualized data.

Significance of Clear Legends for Effective Communication

A clear legend aids in conveying the meaning behind different elements in a plot, making it easier for the audience to interpret the data accurately. Misinterpretation can be avoided, and the viewer can focus on the insights rather than struggling to understand the representation.

Impact of Well-Designed Legends on the Overall Interpretation of Visualizations

Well-designed legends contribute to the overall clarity and aesthetics of a plot. They provide context and help the audience associate visual elements with specific data categories, leading to a more accurate and insightful interpretation of the visualization.

Techniques for Customizing Legends in ggplot2

In ggplot2, there are several techniques for customizing legends to meet specific requirements:

Adjusting Legend Titles and Labels:

Adjusting Legend Titles and Labels:

Sunburst and Treemap Plots
